1/10 M-08 2WD Concept Chassis Kit
$283.99 CAD
Shipping calculated at checkout.
Description
The Tamiya M-08 Concept 1/10 RWD Touring Car Chassis Kit is a high-performance rear-wheel drive chassis kit built around a rigid monocoque chassis with the main frame split into front and rear sections. It offers superior rear traction characteristics and fuss-free maintenance thanks to the easy-access differential. C.V.A. (Constant Volume Adjustable) oil shocks support 4-wheel double wishbone suspension with dedicated long arms and steering linkage components for a wide range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 210mm (S), 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body sets.

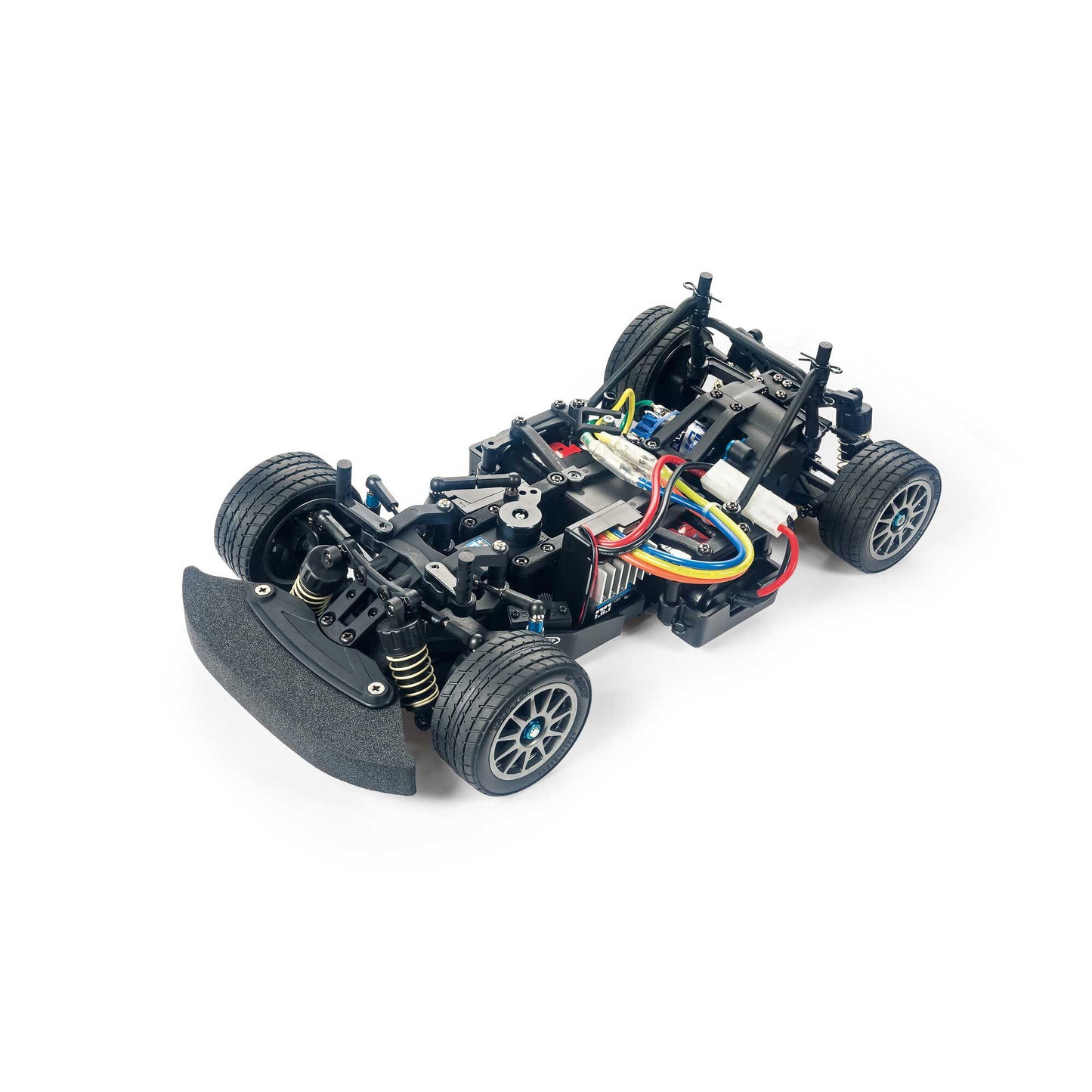

NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Features:
- 1/10 scale R/C model assembly kit
- The chassis is split into front (suspension and servo) and rear (motor and battery) sections. It can be assembled into three different wheelbases: S (210mm), M (225mm) or L (239mm)
- Rear-midship motor powers rear wheels via a differential in the Mid-Rear setup
- Oil-filled differential gear used from the M-07
- Features proven M-07 Concept designs: suspension arms, uprights, suspension mounts and aluminum parts
- Includes CVA oil dampers, universal drive shafts, full ball bearings and hi-torque servo saver
- Comes with updated front suspension mounts (0 degrees) and hub carriers (2 degrees) for a total caster angle of 2 degrees
- Compatible with M-06 Chassis bodies
- Compatible with M-07 Concept Hop-Up Option parts such as Aluminum Rear Suspension Mount (Skid Angle Adjustment) (TAM54787), Aluminum Rear Uprights (TAM54781) and Low-Friction King Pins (TAM54813)
Specifications:
Adjustable Gear Ratio: Yes
Bearings: Full ball bearings
Body: Not Included
Chassis Material: FRP Fiberglass Reinforced Plastic
Chassis Type: M-08
Construction Type: Assembly Kit
Differential Type: Gear-Type (Oil-Filled)
Drive Type: 2WD - RWD
Scale: 1/10
Shock Damper: CVA Oil Filled
Suspension: 4-wheel fully independent double wishbone
Terrain Use: On-Road
Needed to Complete:
- 2-Channel Radio
- Servo
- ESC
- Motor
- 7.2-7.4 volt battery pack & compatible charger
- M-chassis body
- Tires
- Paint
- Tools
This TAMIYA high-performance rear-wheel drive R/C chassis assembly kit is constructed around a rigid monocoque with the main frame split into front and rear sections. It offers superior rear high traction drive characteristics and fuss-free maintenance of parts such as the easy-access differential. C.V.A. (Constant Volume Adjustable) oil shock-damped 4-wheel double wishbone suspension features dedicated long arms and steering linkage components for a range of setup options. A silky-smooth drivetrain utilizes full ball bearings, oil-filled gear differential unit and universal drive shafts. It can be assembled with a 210mm (S), 225mm (M) or 239mm (L) wheelbase, making it compatible with appropriately-sized existing Tamiya M-chassis body parts sets.
- 1/10 scale R/C model assembly kit.
- The chassis is split into front (suspension and servo) and rear (motor and battery) sections. It can be assembled into three different wheelbases: S (210mm), M (225mm) or L (239mm).
- Rear-midship motor powers rear wheels via a differential in the Mid-Rear setup.
- Oil-filled differential gear used from the M-07.
- Features proven M-07 Concept designs: suspension arms, uprights, suspension mounts and aluminum parts.
- Includes CVA oil dampers, universal drive shafts, full ball bearings and hi-torque servo saver.
- Comes with new front suspension mounts (0 degrees) and hub carriers (2 degrees) for a total caster angle of 2 degrees.
- Compatible with M-06 Chassis bodies.
- Requires: 2-Channel Radio, servo, ESC, motor, 7.2-7.4volt battery pack & compatible charger, and body set.
- Compatible with M-07 Concept Hop-Up Option parts such as Aluminum Rear Suspension Mount (Skid Angle Adjustment) (54787), Aluminum Rear Uprights (54781) and Low-Friction King Pin Pipes (54813).
| Scale | 1/10 |
|---|---|
| Receiver | Sold Separately |
| Vehicle Type | On-Road |
| Drivetrain | 2WD |
| Power Type | Electric |
| Speed Control | Sold Separately |
| Completion Level | Kit |
