- Sku: TAM58568A

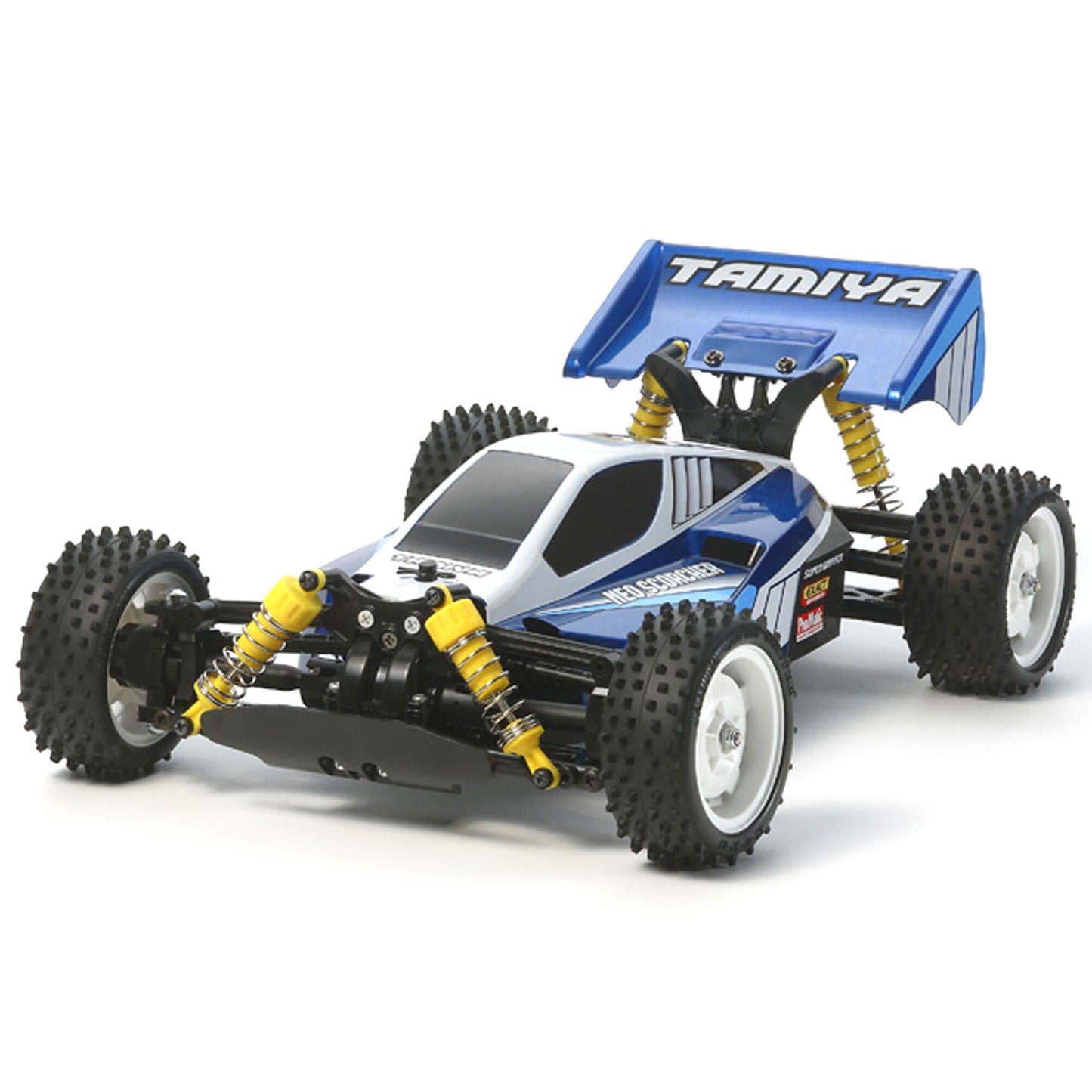

1/10 Neo Scorcher TT-02B 4x4 Off-Road Buggy Kit
Description
Features
- TT-02B plastic chassis uses the popular TT-02 as a platform, but adds longer suspension arms, CVA shocks and buggy bumpers.
- Four-wheel shaft drive with plastic dogbones.
- 540 RS Torque-Tuned motor.
- Clear polycarbonate body with rear wing.
- CVA oil shocks.
- Bellcrank steering.
- Fully independent double suspension.
- Front plastic bumper.
- Gear differentials.
- 3.2" (82 mm) outer diameter rubber pin spike tires.
- White 5-spoke plastic wheels measuring 2.04" (52 mm) diameter, 1.1" (29 mm) front width and 1.4" (35 mm) rear width.
- Non-adjustable camber.
- Adjustable toe-in.
Overview
The Scorcher, a popular and speedy 4WD racing buggy from the late-1980s Tamiya line-up, is back, with a new name and updated body! Made from durable polycarbonate and featuring a stylish large rear wing, the body design drew heavily upon the original Scorcher for inspiration, and can be decorated with the minimum of fuss thanks to the large stickers included. It runs on the easy-assembly shaft-driven 4WD TT-02B, and marries the chassis' controllability with square spike tires for superior grip on rough surfaces. This off-road veteran is back with new features to scorch your rivals!
Shaft-Driven 4WD and Superior Handling from the TT-02B! The shaft-driven 4WD TT-02B buggy chassis uses a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus CVA shock units, giving the car assured handling, while left and right suspension arms and uprights are identical to facilitate hassle-free assembly. Front and rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The top can be removed simply by loosening four screws, making maintenance a breeze. Four different gear ratios can be applied with the use of three separately-sold types of pinion gears, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.
Video Overview
Suspension
4-wheel independent double wishbone suspension features long arms and CVA shock units.
Gear Boxes
Reliable shaft-driven 4WD uses sealed F/R gearboxes for stress-free maintenance.
Receiver
Included receiver case keeps dust out.
Tires and Wheels
Rubber pin spike tires and 5-spoke white wheels.
| Battery | Sold Separately |
|---|---|
| Wheelbase | 10.47" (266 mm) |
| Speed Control | Included |
| Radio | Sold Separately |
| Power Type | Electric |
| Gear Ratio | Adjustable Gear Ratio |
| Vehicle Type | Buggy |
| Charger | Sold Separately |
| Product Length | 14.96" (380 mm) |
| Motor Type | Brushed |
| Drive Type | Forward/Brake/Reverse |
| Suspension | Fully Independent Double Wishbone |
| Shock Type | Oil-filled damper |
| Drivetrain | 4WD |
| Product Width | 9.84" (250 mm) |
| Chassis | TT-02B ABS Plastic |
| Receiver | Included |
| Ball Bearings | Plastic bushing |
| Motor Size | 540-type |
| Body | Polycarbonate |
| Scale | 1/10 |
| Product Height | 5.7" (145 mm) |
| Differential | Gear |
| Completion Level | Kit |
