1/10 TT-02R 4x4 Chassis Kit

The Tamiya TT-02R 4WD Touring Car Kit is a refined, race-spec version of the TT-02 chassis that features a wide range of option parts and redesigned components to make it ready to race. The included racing spec parts include upgraded uprights, motor mount, shafts, joint cups and more, while the suspension is fitted with metal parts and CVA oil dampers. It retains the TT-02's versatility and easy-to-drive characteristics.

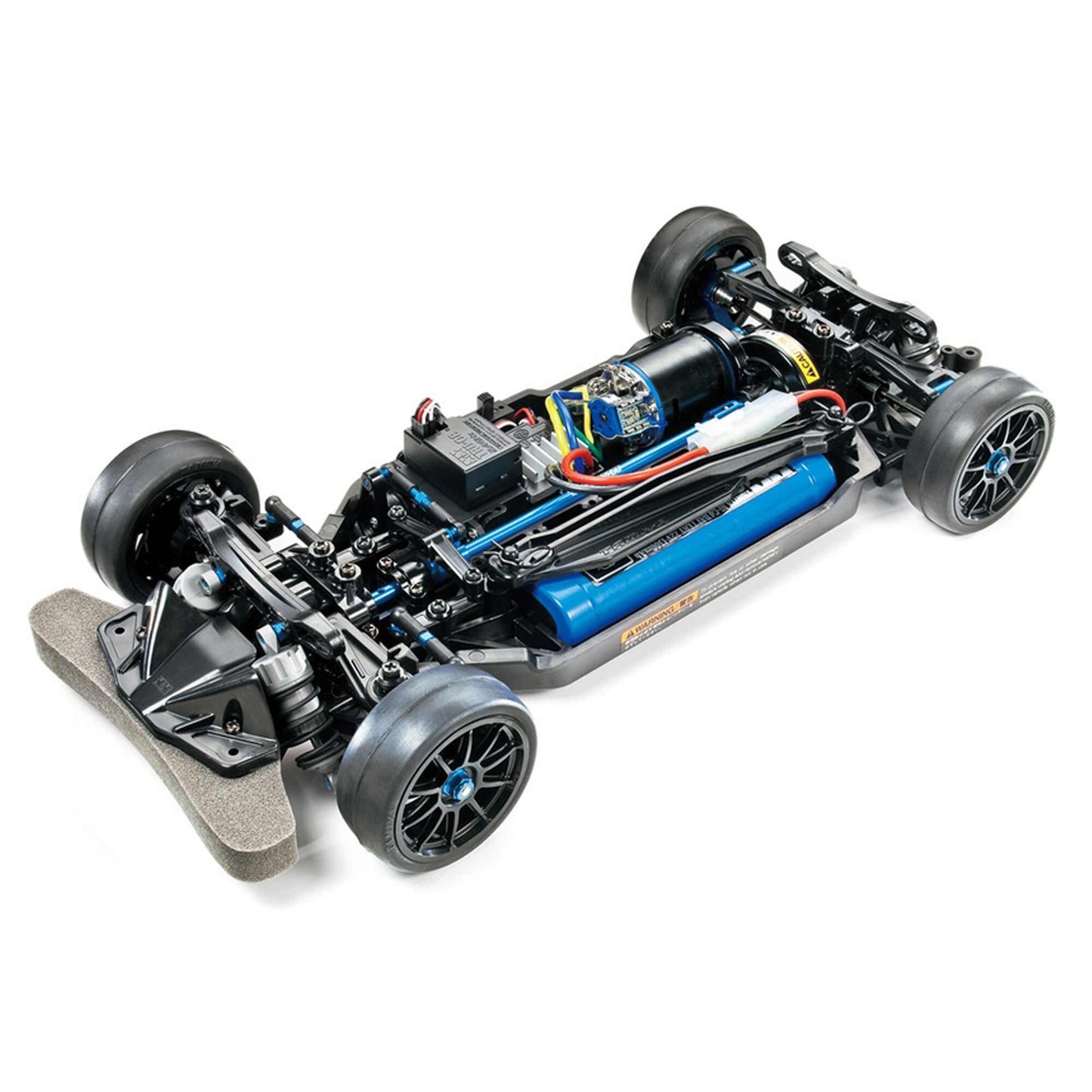

NOTE: Finished chassis shown in photos is for illustrative purposes only. See needed to complete list below for a full list of items required to complete the model.

Features:

• Aluminum uprights (3-degree toe-in)
• Aluminum motor mount

Specifications:

Adjustable Gear Ratio: Yes

Bearings: Includes full ball bearings

Chassis Material: ABS Plastic

Chassis Type: TT-02R

Construction Type Assembly: Kit

Differential Type: Gear

Drive Type: 4WD

Requires A: Requires 2-channel radio, steering servo, ESC, 7.2-volt battery with charger and tires.

Scale: 1/10

Shock Damper: CVA Oil Filled

Suspension: Fully Independent Double Wishbone

Terrain: Use On-Road

Included Hop-Up-Option parts:

• TAM53159 4mm Aluminum Flange Lock Nut (Blue)
• TAM54247 3x18mm Aluminum Turnbuckle Shaft (Blue) x2
• TAM54501 TT-02 Aluminum Propeller Shaft
• TAM53642 5mmAluminum Ball Connector (Blue)
• TAM54500 TT-02 High-Speed Gear Set (68T)
• TAM54502 TT-02 Aluminum Propeller Joint

Needed To Complete:

• 2-Channel Radio and Receiver
• Steering Servo
• 1/10 ESC
• 540 Sized Motor
• 257mm Wheelbase Body
• Polycarbonate Paint
• 7.2-7.4V Battery Pack
• Compatible Charger
• Tools

Spur Gear	68T
Differential	Gear Diffs
Vehicle Type	Touring Car
Receiver	Sold Separately
Product Width	7.16535" (182 mm)
Power Type	Electric
Battery	Sold Separately
Ball Bearings	Full Ball Bearings
Charger	Sold Separately
Product Length	14.8031" (376 mm)
Gear Ratio	Adjustable
Servos	Sold Separately
Body	190mm Touring Car, Sold Separately
Wheel Type	10-spoke
Vehicle Size	Standard
Drive Type	Forward/Brake/Reverse
Completion Level	Kit
Drivetrain	4WD
Shock Type	CVA Oil Filled
Scale	1/10
Steering Type	2WS
Radio	Sold Separately
Speed Control	Sold Separately
Chassis	ABS Plastic, TT-02R
Tire Tread	Slick
Suspension	Fully Independent Double Wishbone
