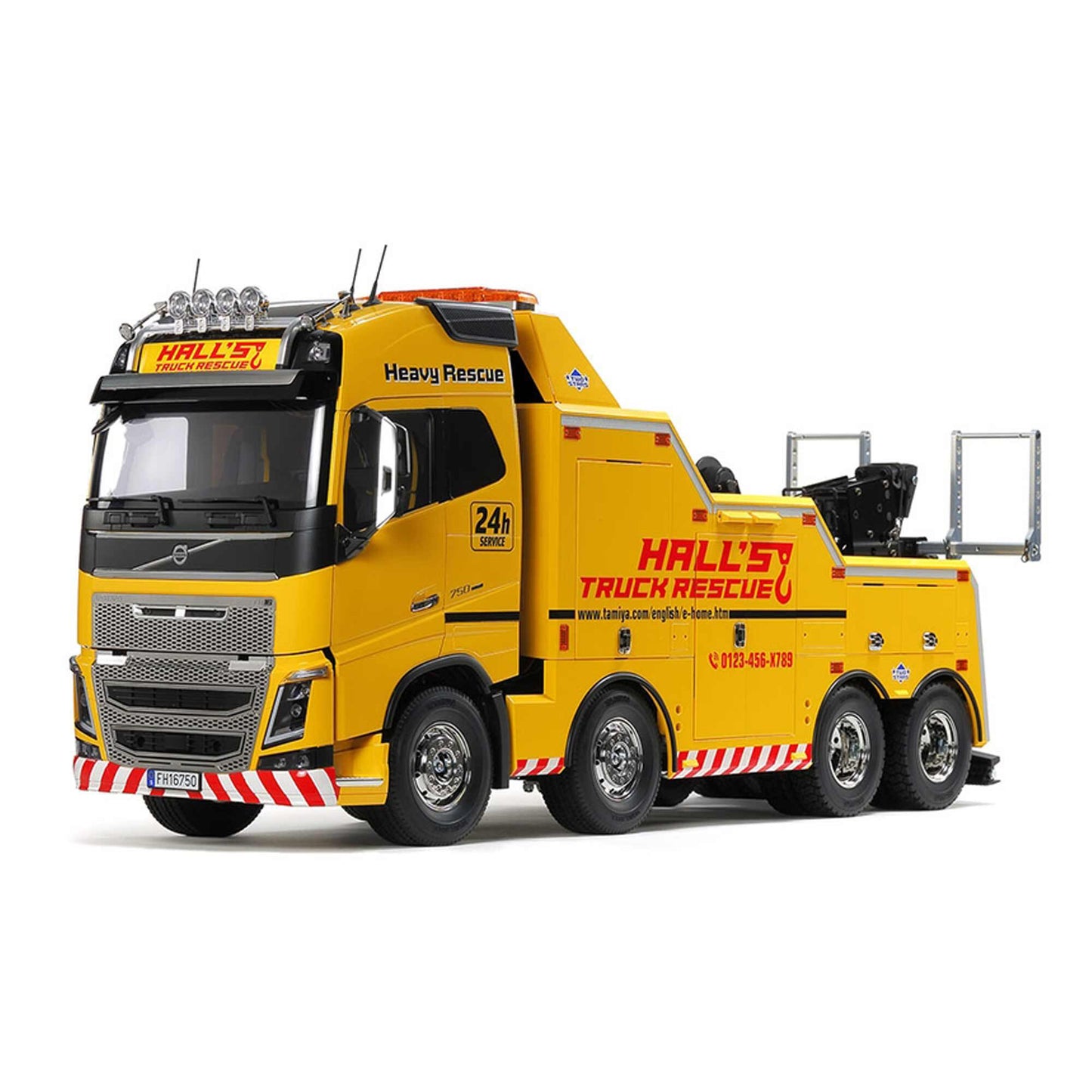

1/14 Volvo FH16 Globetrotter 750 8X4 Tow Truck Kit

The Tamiya 1/14 Volvo FH16 Globetrotter 750 8x4 Tow Truck Kit builds on the series of ultra-realistic 1/14 scale R/C trucks that have offered fun and realistic driving for decades. This kit recreates the Volvo FH16 Globetrotter 750 8x4 tow truck, a renowned model in the global commercial vehicle market. It promises a completely different element of enjoyment to its predecessors, but fits in perfectly in the series.

Features:

• 1/14 scale R/C model assembly kit.
• Features a detailed molded plastic depiction of the cab, with photo-etched front grille and interior detail features.
• This model’s front axles feature the first twin steering system seen in the Tamiya 1/14 Truck series.
• Includes metal components for excellent durability.
• Install the new separately available Actuator Set (Item 56553) to control its actions via your R/C transmitter.
• Ladder frame has aluminum side channels and resin cross members. Power from the front motor is delivered to the two rear axles via a propeller shaft.
• A built-in differential gear on each axle enables smooth cornering.
• Highly realistic suspension utilizes metal leaf springs and friction dampers.
• The model enjoys easy driving thanks to the float-mounted die-cast front and reinforced resin rear axles.
• Three-speed transmission allows shifting via the R/C transmitter (Note: only one gear is usable when towing).
• Headlights and taillights can be lit up with separately sold LEDs, and the model is compatible with Tractor Truck Multi-Function Control Unit "Euro-Style" (MFC-03) (TAM56523 - not included).
• Compatible TROP truck option parts: TAM56523, TAM56531, TAM56538, TAM56548, TAM56549, TAM56550, TAM56551, TAM56553
• Shock Damper Oil-filled damper
• Terrain Use On-Road

Specifications:

Length: 750mm

Width: 195mm

Height: 300mm

Adjustable Gear Ratio: Yes

Bearings: Metal bearings and bronze bushings

Body Material: ABS Plastic

Body Stickers: Included

Chassis Material: Aluminum and ABS plastic

Chassis Type: Semi-Truck

Construction Type: Assembly Kit

Differential Type: Gear

Drive Type: 2WD

Motor Brushed: 540 Type

Scale: 1/14

Needed to Complete:

• 4-Channel radio
• (2) servos
• ESC
• 7.2volt battery with compatible charger
• Tamiya TS spray and Acrylic bottle paints

Product Length	29.5" (749 mm)
Drivetrain	4WD
Receiver	Sold Separately
Shock Type	Oil-filled damper
Battery Tray Dimensions	5.2 x 1.8 x 0.9 (132 x 45 x 23mm)
Battery	Sold Separately
Motor Type	Brushed
Drive Type	Forward/Brake/Reverse
Product Height	11.8" (300 mm)
Completion Level	Kit
Differential	Gear Type
Gear Ratio	Adjustable
Scale	1/14
Suspension	Metal leaf springs and friction shocks
Chassis	Aluminum and ABS plastic
Ball Bearings	Metal bearings and bronze bushings
Servos	Sold Separately
Body	ABS Plastic
Radio	Sold Separately
Product Width	7.7" (196 mm)
Tire Tread	On-Road
Motor Size	Brushed 540 Type
Power Type	Electric
Speed Control	Sold Separately
Bushing Material	Metal
Approximate Assembly Time	10-15 Hours
Brakes	Integrated with ESC (ESC not included)
Charger	Sold Separately
Vehicle Type	Semi Truck
Water-Resistant	No
