- Sku: SEHREEFS119

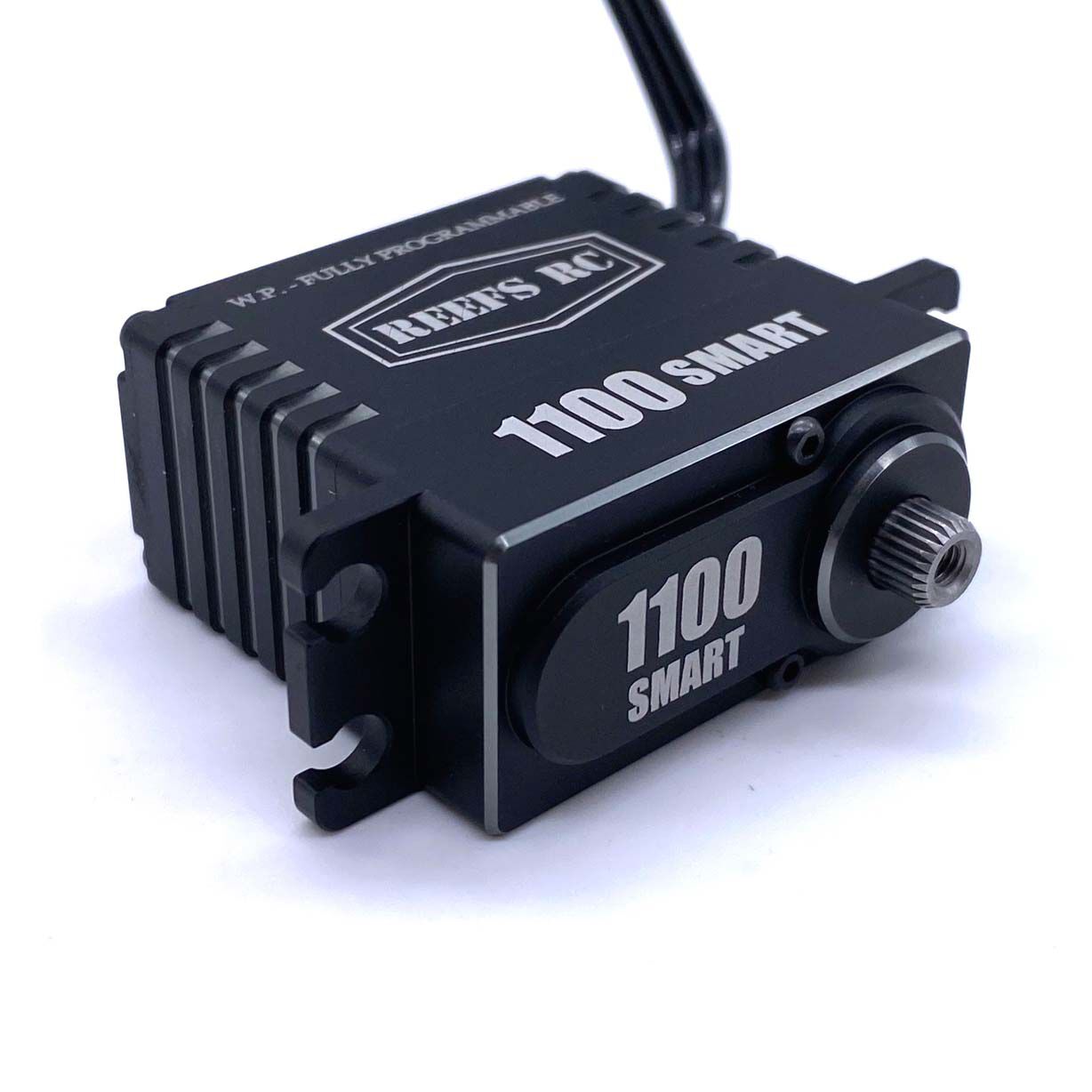

1100 Smart Digital Metal Gear Waterproof Programmable Servo & Winch Black
$304.99 CAD
Shipping calculated at checkout.
Description
High Torque High Speed Brushless SERVO or WINCH
| Current Draw Stall | 5.4A @ 4.8V, 6.0A @ 6.0V, 6.8A @ 7.4V, 7.5A @ 8.4V |
|---|---|
| Bearing | Quad Ball Bearings |
| Gear Type | Metal |
| Current Draw Idle | 460mA @ 4.8V, 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V |
| Bushing Or Bearing | Bearing |
| Spline Count | 25 - Tooth |
| Connector Type | Universal |
| Water-Resistant | Yes |
| Servo Type | Digital |
| Servo Size Category | Standard |
| Deadband | 2袖s |
| Programmable | Yes |
| Maximum Servo Torque | 760oz/in @ 6V, 930oz/in @ 7.4V, 1100oz/in @ 8.4V |
| Product Width | 0.79" (20 mm) |
| Servo Operating Voltage | 4.8 - 8.4V (HV) |
| Input Voltage | 4.8V ~ 8.4V |
| Application | 1/10 Cars, Trucks- Winch/Steering (Programmable) |
| Product Length | 1.57" (40 mm) |
| Product Weight | 2.99oz (85g) |
| Product Height | 1.5" (38 mm) |
| Maximum Servo Speed | 0.16 sec/60 deg @ 6.0V, 0.13 sec/60 deg @ 7.4V, 0.12 sec/60 deg @ 8.4V |
