- Sku: SEHREEFS118

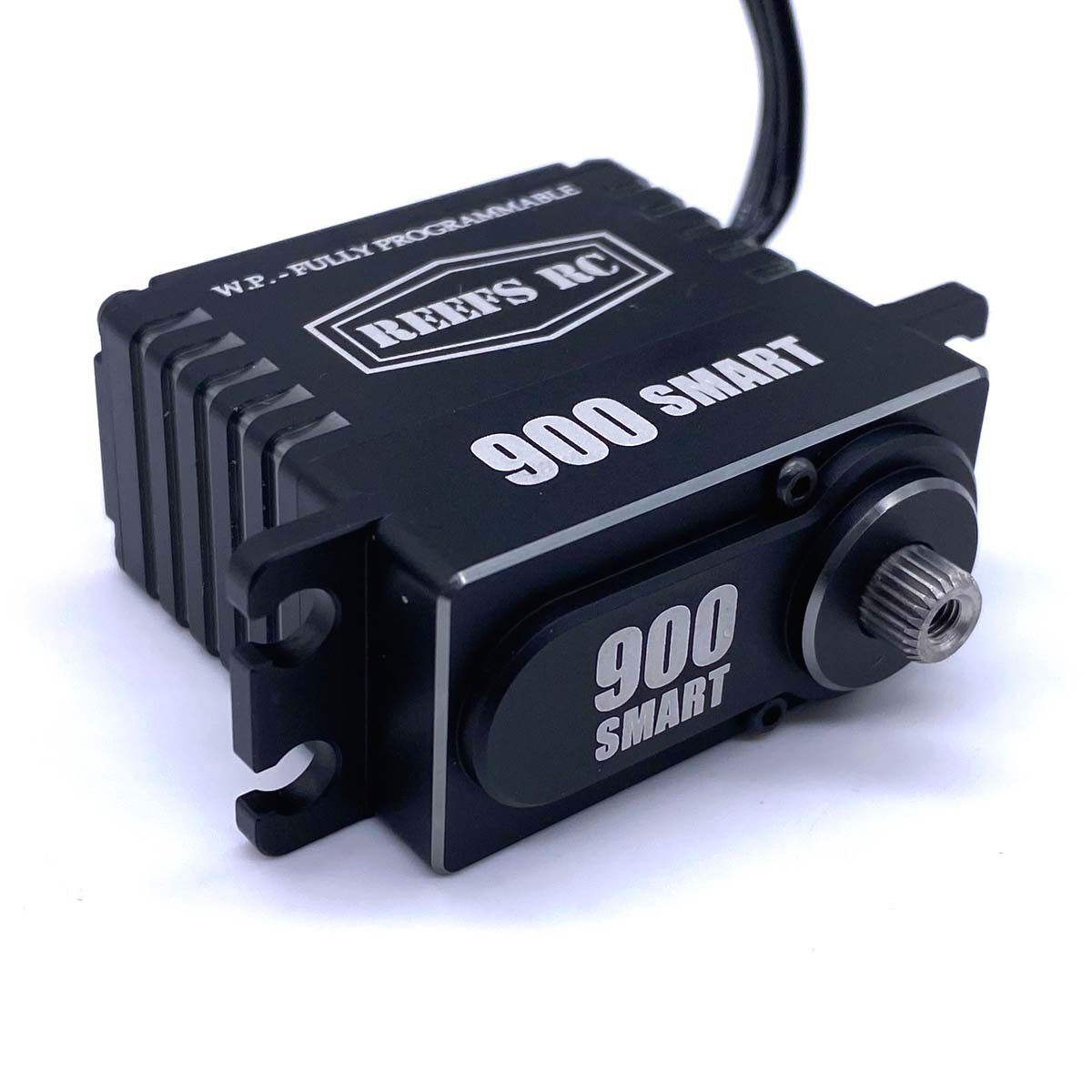

900 Smart Digital Metal Gear Waterproof Programmable Servo & Winch Black
$288.99 CAD
Shipping calculated at checkout.
Description
High Torque High Speed Brushless SERVO or WINCH
| Product Height | 1.5" (38 mm) |
|---|---|
| Servo Type | Digital |
| Product Weight | 2.99oz (85g) |
| Product Width | 0.79" (20 mm) |
| Water-Resistant | Yes |
| Motor Type | Brushless |
| Gear Type | Metal |
| Deadband | 2袖s |
| Spline Count | 25 - Tooth |
| Input Voltage | 4.8V~ 8.4V |
| Connector Type | Universal |
| Product Length | 1.57" (40 mm) |
| Current Draw Stall | 5A @ 4.8V, 5.8A @ 6.0V, 6.8A @ 7.4V, 7.4A @ 8.4V |
| Maximum Servo Torque | 720oz/in @ 6V, 830oz/in @ 7.4V, 940oz/in @ 8.4V |
| Maximum Servo Speed | 0.13 sec/60 deg @ 6.0V, 0.12 sec/60 deg @ 7.4V, 0.10 sec/60 deg @ 8.4V |
| Programmable | Yes |
| Servo Operating Voltage | 4.8 - 8.4V (HV) |
| Current Draw Idle | 460mA @ 4.8V, 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V |
| Bearing | Quad Ball Bearings |
| Application | 1/10 - 1/18 Cars, Trucks- Winch/Steering |
| Servo Size Category | Standard |
| Bushing Or Bearing | Bearing |
900 Smart Digital Metal Gear Waterproof Programmable Servo & Winch Black
$288.99 CAD
