- Sku: SPMSA2005

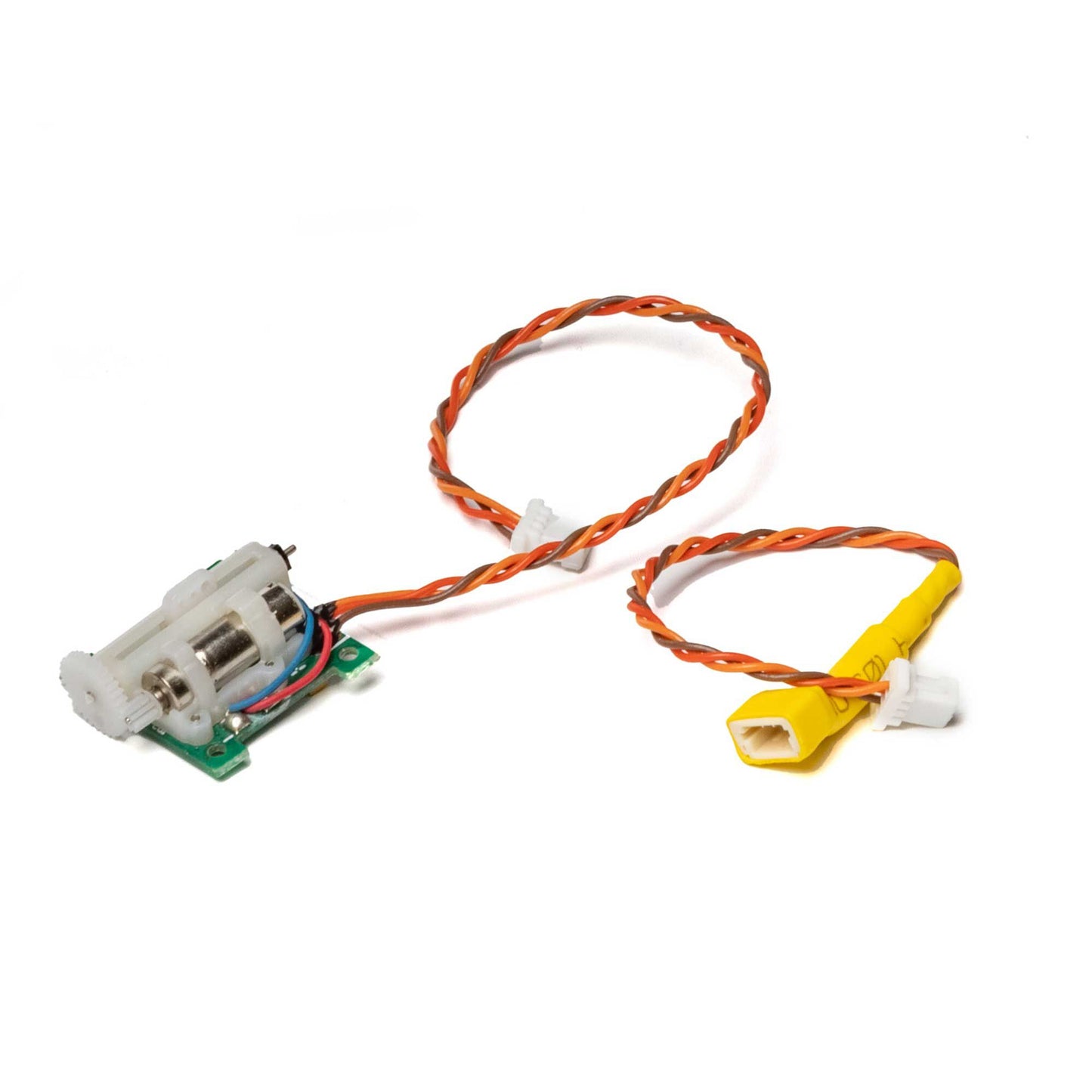

A2005 Ultra-Micro Analog 1.8g Linear Aircraft Servo
$34.90 CAD
Shipping calculated at checkout.
Description
Key Features
- Weighing only 1.8 grams, this servo is incredibly lightweight
- DSM2 technology- can be used with AR6400 and AR6410 series receivers
- Compact footprint makes it extra-versatile in Ultra-Micro applications
- 9.1mm servo throw allows for aerobatic flight performance
Overview
Designed to work in conjunction with Spektrum�� AR6400 & AR6410 series of Ultra-Micro Receiver, this linear servo plugs into an open port to expand the installation options on your Ultra-Micro aircraft. Each servo comes with a linear servo reverser (SPM6825).
Detailed Information
Click Here to see Spektrum's Servo Reference Chart
| Product Length | 0.6" (15 mm) |
|---|---|
| Programmable | No |
| Connector Type | JST-SHR |
| Gear Type | Nylon |
| Product Width | 0.59" (15 mm) |
| Product Height | 0.33" (8 mm) |
| Product Application | Air |
| Bushing Or Bearing | Bushing |
| Servo Type | Analog |
| Servo Operating Voltage | 3.2 - 4.2V |
| Product Weight | 0.06oz (1.80g) |
| Maximum Servo Torque | 2.8 oz (79.4g) @ 4.2V |
| Water-Resistant | No |
| Maximum Servo Speed | 0.14 sec @ 4.2V |
| Servo Size Category | Ultra Micro |
| Application | Air |
| Motor Type | Brushed |
