- Sku: SPMSA3040

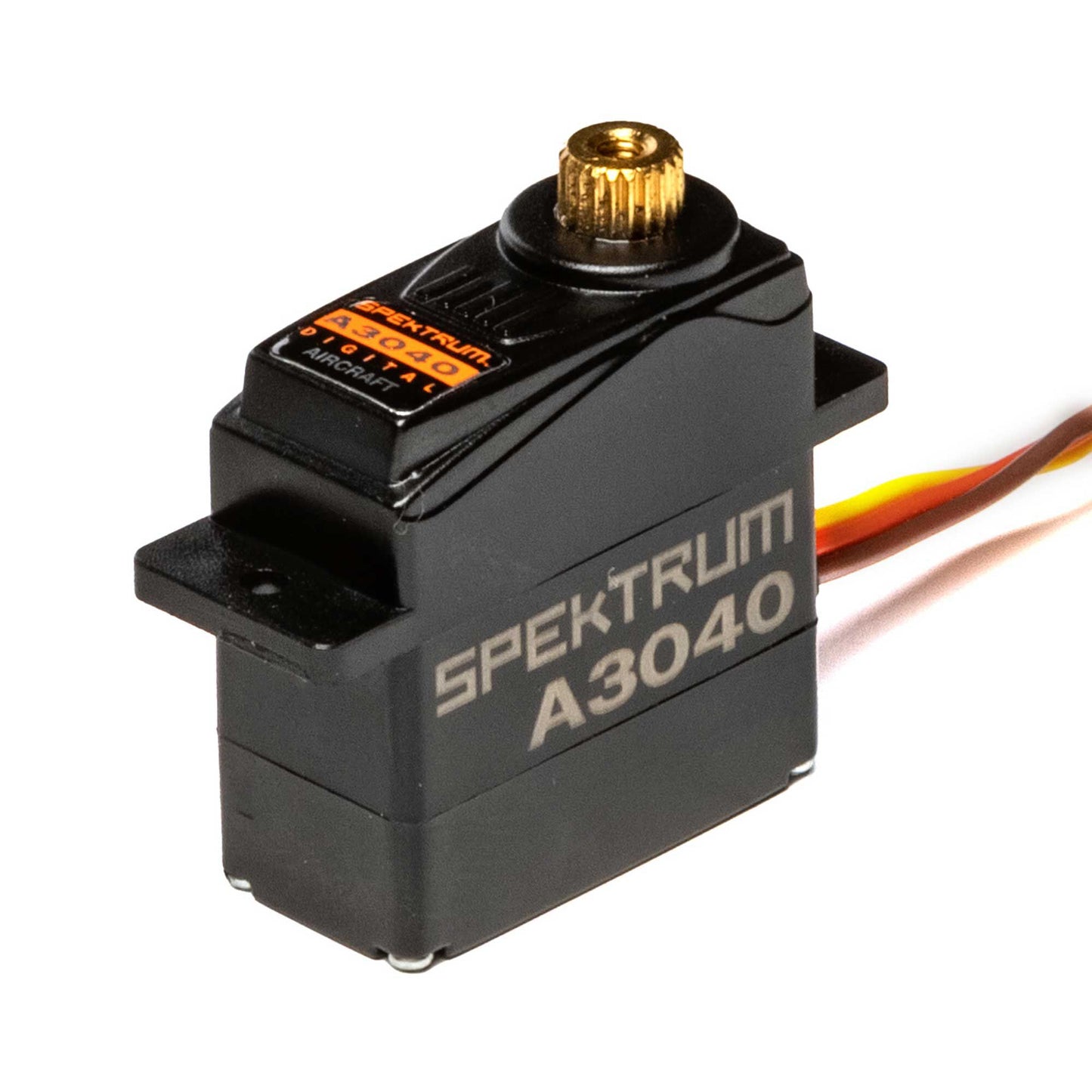

A3040 Sub-Micro Digital High Torque Metal Gear Aircraft Servo
$56.99 CAD
Shipping calculated at checkout.
Description
Key Features
- High speed
- Low cost
- Low deadband
- Digital precision
- Metal gears
Overview
This 0.10-second transit time (at 6 volts), 28 oz-in of torque, metal gear servo is an ideal combination of weight, speed and holding power for slow and park flyer aircraft. Ball bearing support around the output shank helps keep the servo precise for many flights to come.
Choose the A3040 servo for electric aircraft and sailplanes where the robust nature of metal gears is desired. The low deadband technology means that you’ll enjoy reliable accuracy and precision.
Detailed Information
Click Here to see Spektrum's Servo Reference Chart| Product Height | 1" (25 mm) |
|---|---|
| Product Application | Air |
| Product Length | 0.93" (24 mm) |
| Application | Air |
| Material | Plastic |
| Bearing | Single |
| Water-Resistant | No |
| Servo Type | Digital |
| Servo Size Category | Sub-Micro |
| Maximum Servo Torque | 23 oz-in (1.66 kg-cm) @ 4.8V; 28 oz-in (2 kg-cm) @ 6.0V |
| Bushing Or Bearing | Bearing |
| Product Weight | 0.44 oz (12.6 g) |
| Servo Operating Voltage | 4.8 - 6.0V |
| Programmable | No |
| Gear Type | Metal |
| Product Width | 0.45" (11 mm) |
