- Sku: SPMSA5070

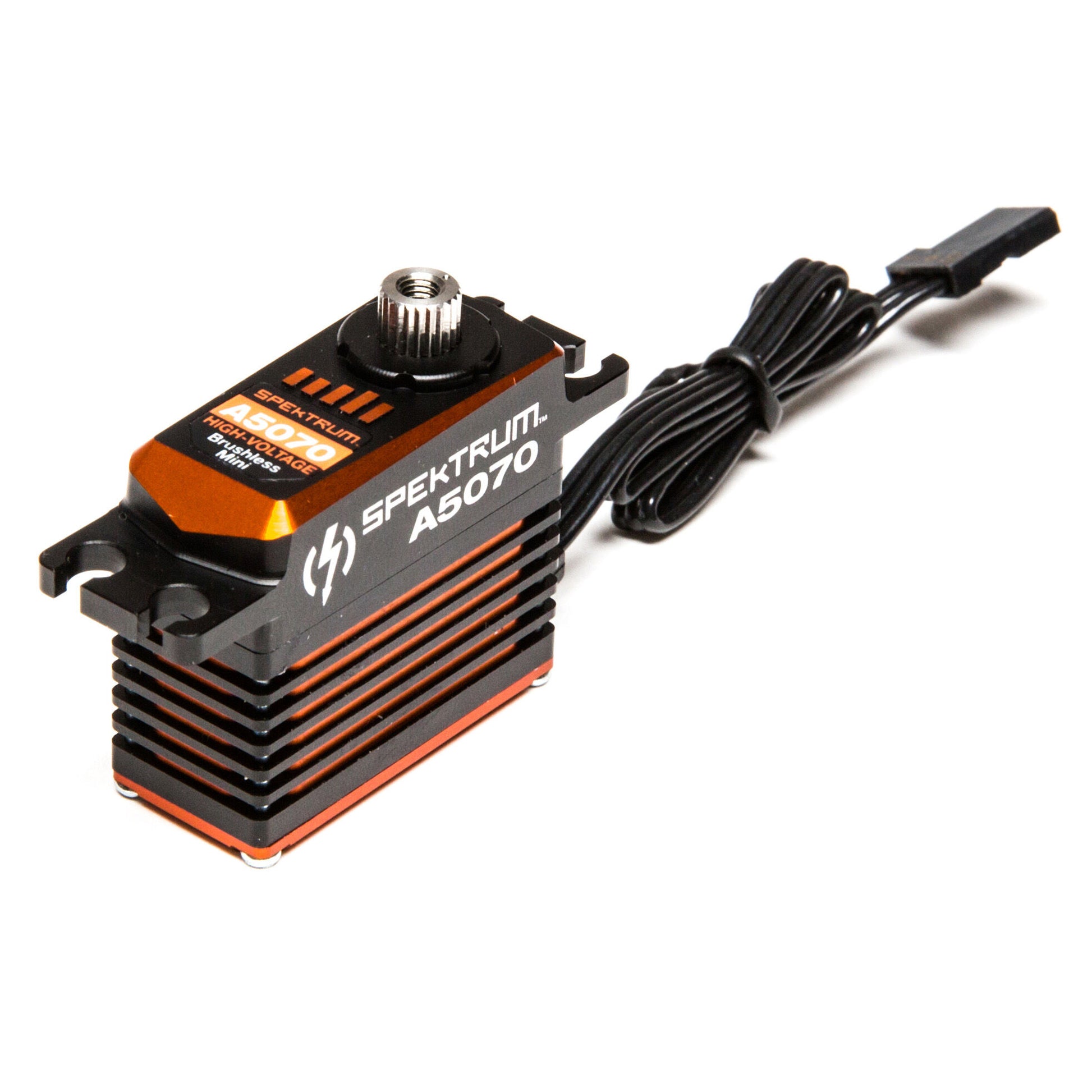

A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo
Description
Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, high-speed performance more efficiently than servos with conventional motors. The all-aluminum case provides the ultimate solution in durability and heat dissipation, while precision metal gears complete a satisfaction package even the most critical pilot can appreciate. The Spektrum A5070 mini servo uses this solid foundation to achieve a whopping 190 oz/in of torque* and high transit speeds of .07 sec* in addition to its outstanding balance of durability, value, plus the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It�� an impressive feature combination that makes this mighty servo an outstanding airplane or heli servo choice.
| Bushing Or Bearing | Bearing |
|---|---|
| Product Width | 0.59" (15 mm) |
| Product Application | Air |
| Maximum Servo Speed | 0.094 sec/60 deg @6.0V; 0.078 sec/60 deg @ 8.4V |
| Connector Wire Length | 11.8" (300 mm) |
| Connector Type | Universal |
| Wire Gauge | 22 AWG |
| Spline Count | 23 - Tooth |
| Product Weight | 1.4 oz (40g) |
| Overload Protection | Yes |
| Programmable | No |
| Maximum Servo Torque | 146.43 oz-in @6.0V; 190.58 oz-in @ 8.4V |
| Product Length | 1.32" (34 mm) |
| Servo Type | Digital |
| Bearing | Dual Ball Bearing |
| Product Height | 1.16" (29 mm) |
| Rotation Range | 120 Degrees |
| Motor Type | Brushless |
| Application | Airplane or Heli |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
| Gear Type | Metal |
| Servo Size Category | Mini |
| Water-Resistant | No |
| Deadband | 2袖s |
A5070 Mini Digital HV High Torque High-Speed Brushless Metal Gear Aircraft Servo
