- Sku: SPMSA6390

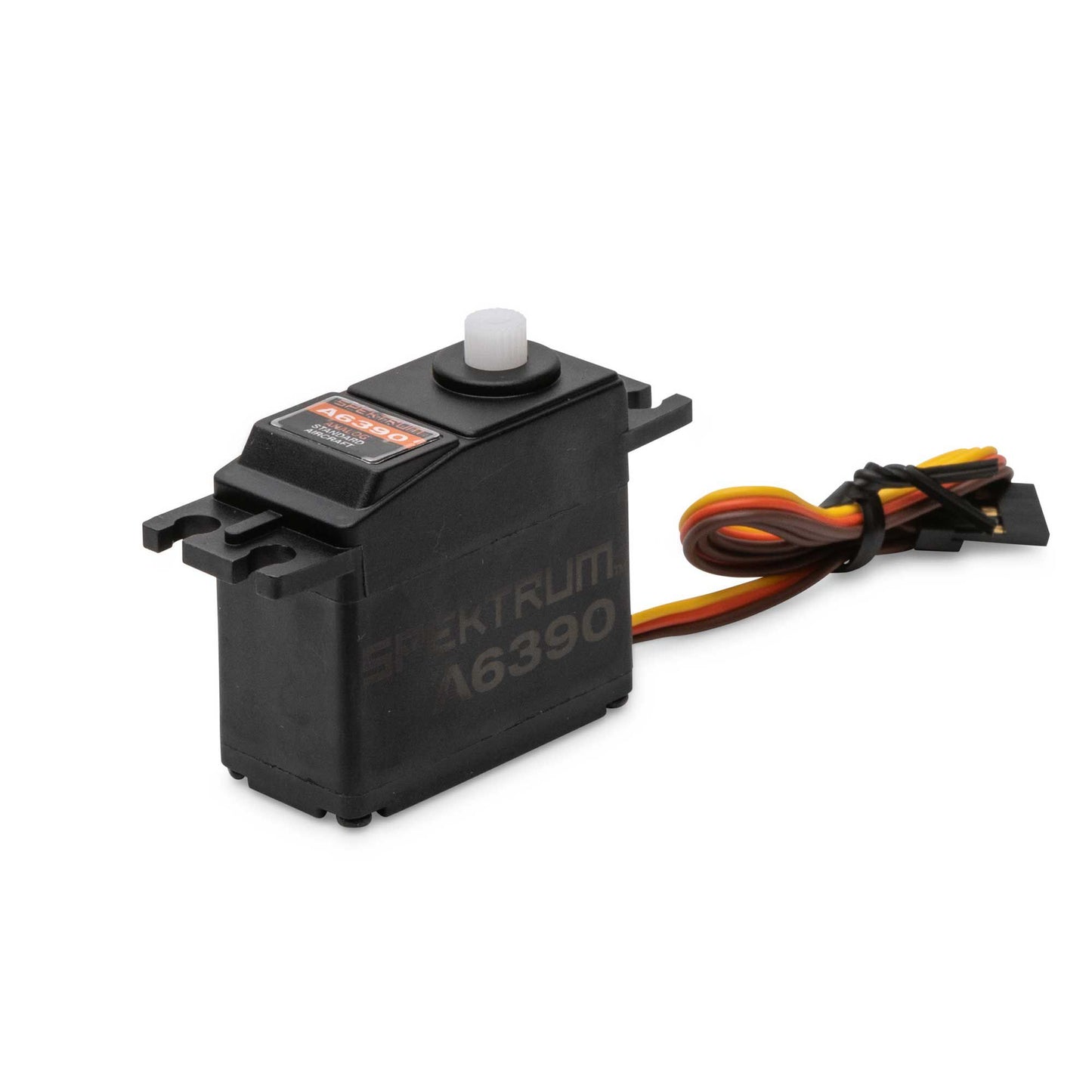

A6390 Standard Analog Mid Torque Mid Speed Aircraft Servo
$34.99 CAD
Shipping calculated at checkout.
Description
Overview
The Spektrum A6390 standard size analog sport servo is the perfect budget solution that offers a lightweight plastic gear train, a budget class leading torque rating of 66 oz/in and quick transit speed of 0.14/60. Single ball bearing output shaft and a robust composite plastic case offers durability you can depend on in your 60 size or smaller trainer and sport models. Includes all the mounting hardware and 3 Heavy Duty plastic arms needed for your project.
| Application | Air |
|---|---|
| Product Height | 1.36" (35 mm) |
| Bushing Or Bearing | Bearing |
| Input Voltage | 4.8V to 6.0V |
| Wire Gauge | 22 AWG |
| Connector Type | Universal |
| Servo Size Category | Standard |
| Maximum Servo Speed | 0.17 sec/60 deg @ 4.8V | 0.14 sec/60 deg @6.0V |
| Deadband | 3µs |
| Product Weight | 1.3oz (37g) |
| Material | Plastic |
| Product Width | 0.74" (19 mm) |
| Spline Count | 23 - Tooth |
| Gear Type | Nylon |
| Programmable | No |
| Servo Type | Analog |
| Product Application | Air |
| Rotation Range | 120 deg |
| Maximum Servo Torque | 48.6 oz-in (3.5kg-cm) @ 4.8V | 66.7 oz-in (4.8kg-cm) @ 6.0V |
| Bearing | Single |
| Product Length | 1.52" (39 mm) |
| Connector Wire Length | 12" (305 mm) |
| Water-Resistant | No |
| Servo Operating Voltage | 4.8 - 6.0V |
