- Sku: SPMSA7090

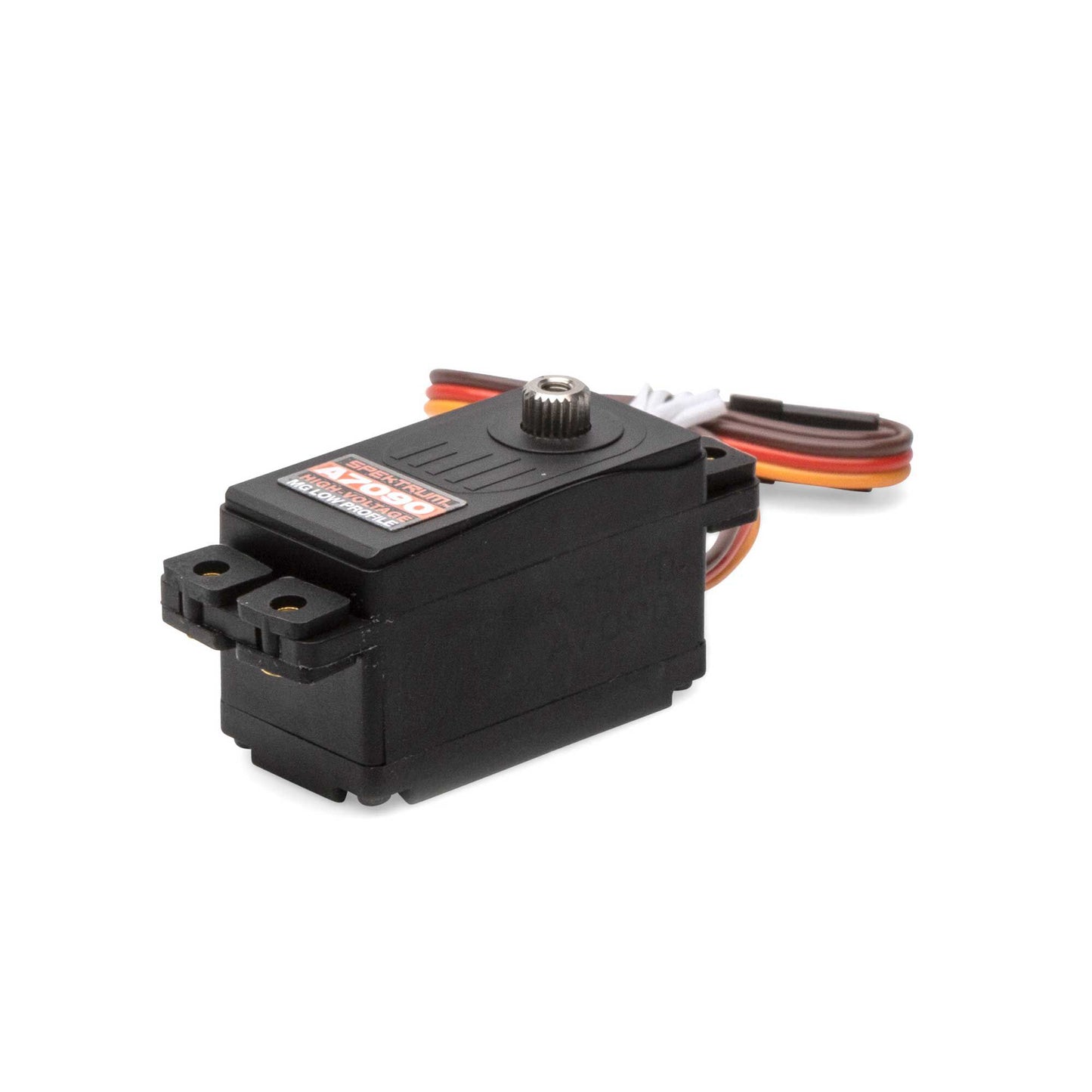

A7090 Brushless Low Profile Metal Gear HV Servo
$115.99 CAD
Shipping calculated at checkout.
Description
Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Low profile design to fit into tighter spaces and shallow wing pockets
- Impressive torque and speed in a standard low profile servo size (18kg-cm and .068 sec/60° @8.4v)
- Durable and long-lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Operating Frequency: 200hz to 333hz
A7090 High Torque High Speed Brushless Low Profile MG HV Servo
The low profile Spektrum™ A7090 brushless digital metal gear servo offers superb performance at a great price for standard aircraft applications. High voltage capable, the A7090 can produce an impressive 18 kg-cm (250 oz-in) of torque at blazing fast 0.068 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a durable, long-lasting brushless motor and is supported by dual ball bearings for smooth operation. It also features low deadband and precise holding power. Like all Spektrum servos, the A7090 delivers reliability, consistency and performance that are second to none.
| Input Voltage | 4.8V-8.4V |
|---|---|
| Product Width | 0.81" (21 mm) |
| Product Application | Air |
| Motor Type | Brushless |
| Deadband | <1µs |
| Water-Resistant | No |
| Application | Airplane |
| Maximum Servo Torque | 205 oz-in (14.76kg-cm) @ 6.0V; 215 oz-in (15.5kg-cm) @ 7.4V; 250 oz-in (18kg-cm) @ 8.4V |
| Gear Type | Metal |
| Spline Count | 23 - Tooth |
| Bearing | Dual BB |
| Bushing Or Bearing | Bearing |
| Overload Protection | No |
| Product Height | 0.99" (25 mm) |
| Servo Operating Voltage | 4.8 - 8.4V (HV) |
| Product Weight | 1.8 oz (50g) |
| Maximum Servo Speed | 0.17 sec/60 deg @ 6.0V; 0.091 sec/60 deg @ 7.4V; 0.068 sec/60 deg @ 8.4V |
| Product Length | 1.6" (41 mm) |
| Servo Size Category | Low Profile |
| Programmable | No |
| Servo Type | Digital |
| Connector Type | Universal |
