- Sku: SPMSH6350

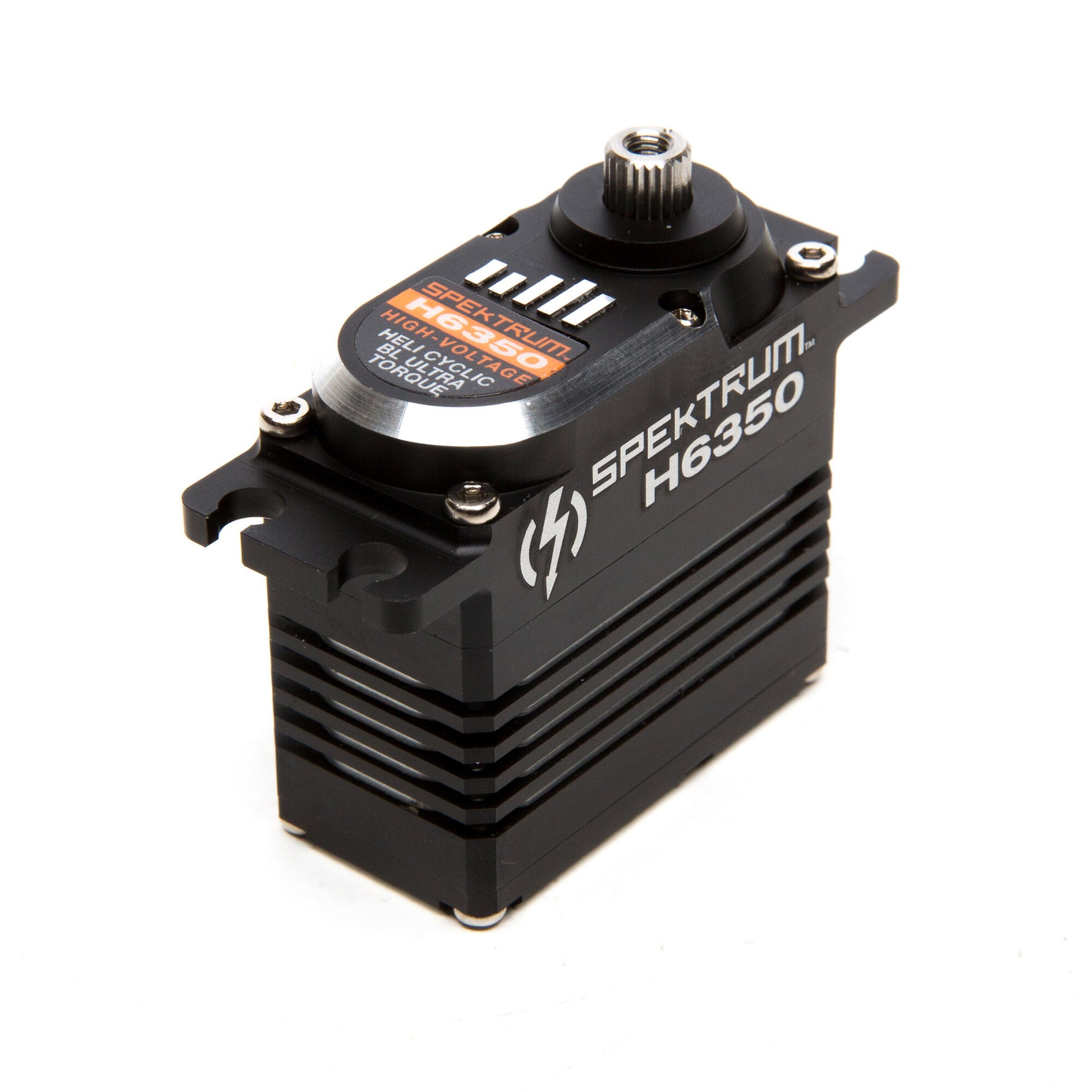

H6350 Standard Digital HV Brushless Ultra Torque High Speed Heli Cyclic Servo
Description
Overview
Spektrum��high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-powerful/ultra-fast heli performance more efficiently than servos with conventional motors. Heavy-duty servo lead-wire includes the convenience of a quick-release cable connection. The all-aluminum case provides the ultimate solution in durability and heat dissipation. Precision metal gears satisfy even the most critical heli pilot who wants hassle-free control.
The Spektrum H6350 cyclic servo uses this solid foundation, to achieve an outstanding balance of performance, durability and value, in addition to the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It�� a brilliant feature combination that makes this servo an outstanding swashplate control choice for 550- to 700-class electric and nitro helicopters.
| Maximum Servo Torque | 416.4 oz-in (30.0 kg-cm) @ 8.4V |
|---|---|
| Product Length | 1.57" (40 mm) |
| Product Application | Heli Cyclic |
| Product Width | 0.79" (20 mm) |
| Part Type | Electronics |
| Deadband | 2袖s, 3袖s |
| Servo Type | Digital |
| Motor Type | Brushless |
| Servo Size Category | Standard |
| Bearing | Dual |
| Product Height | 1.49" (38 mm) |
| Bushing Or Bearing | Bearing |
| Application | Heli Cyclic |
| Connector Wire Length | 6" (152 mm) |
| Product Weight | 2.54oz (72g) |
| Programmable | No |
| Connector Type | Universal |
| Wire Gauge | 22 AWG |
| Gear Type | Metal |
| Maximum Servo Speed | 0.062 sec/60属 @ 8.4V |
| Material | Metal |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
H6350 Standard Digital HV Brushless Ultra Torque High Speed Heli Cyclic Servo
