- Sku: SPMSS7110

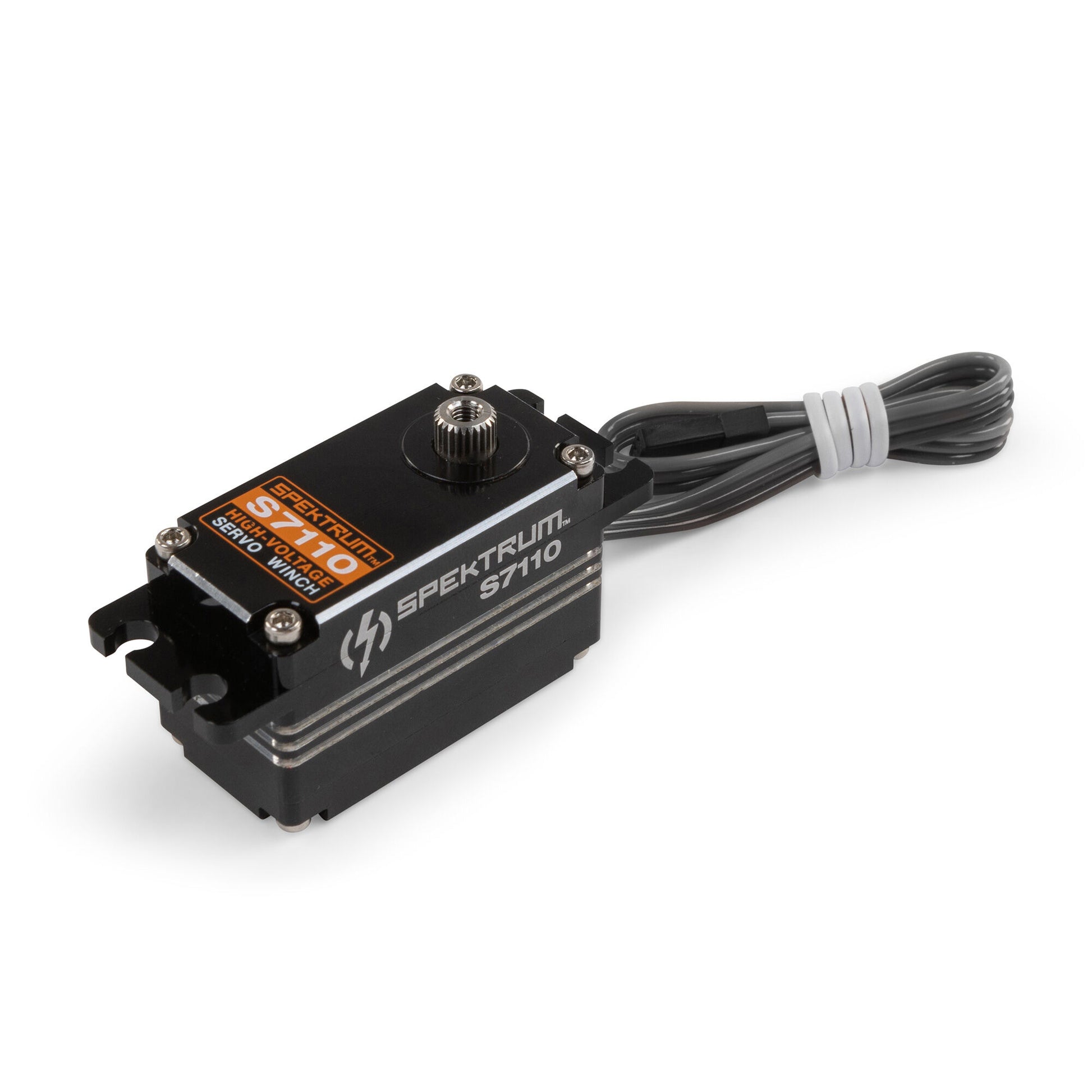

S7110 Low Profile Servo Winch: 1/10 Rock Crawlers
$258.99 CAD
Shipping calculated at checkout.
Description
Features
- Design for 1/10th Scalers and Crawlers
- 6V to 8.4V Operating Voltage
- Durable and long-lasting brushless motor
- High Torque (130oz-in @ 6V, 160oz-in @ 7.4V, and 180 oz-in @ 8.4V)
- All Aluminum servo case for heat dissipation
- 7' feet of line with scale recovery hook included
- Built-in Integrated brushless controller for easy set up and installation
- Precise metal internal gears
- Waterproof
- 25 teeth output shaft
- Includes everything needed to start winching
Overview
The Spektrum servo winch offers incredible performance for 1/10th scaler and crawlers. High voltage capable, the servo winch can produce 160 oz of torque at 155RPM at 7.4V input. It's low-wear, metal gear drive train is powered b a brushless motor and bearing supported for smooth operation. Like all Spektrum servos, the S7110 Servo Winch delivers reliability, consistency, and performance that is second to none.
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
|---|---|
| Connector Type | Universal |
| Maximum Servo Speed | 123RPM @ 6.0V, 155RPM @ 7.4V |
| Servo Type | Digital |
| Product Length | 1.59" (40 mm) |
| Gear Type | Metal |
| Current Draw Stall | 1.6A @ 6.0V, 1.8A @ 7.4V, 2A @ 8.4V |
| Connector Wire Length | 7.48" (190 mm) |
| Application | 1/10 Rock Crawlers- Winch |
| Spline Count | 25 - Tooth |
| Bearing | Ball Bearing |
| Bushing Or Bearing | Bearing |
| Wire Gauge | 22 AWG |
| Maximum Servo Torque | 130oz/in @ 6.0V, 160oz/in @ 7.4V, 180oz/in @ 8.4V |
| Product Weight | 2oz (57g) |
| Rotation Range | 360 Degree Continuous |
| Current Draw Idle | 2mA |
| Product Width | 0.8" (20 mm) |
| Product Height | 0.99" (25 mm) |
| Programmable | No |
| Servo Size Category | Low Profile |
| Input Voltage | 6.0V ~ 8.4V |
