- Sku: TEKTT1503

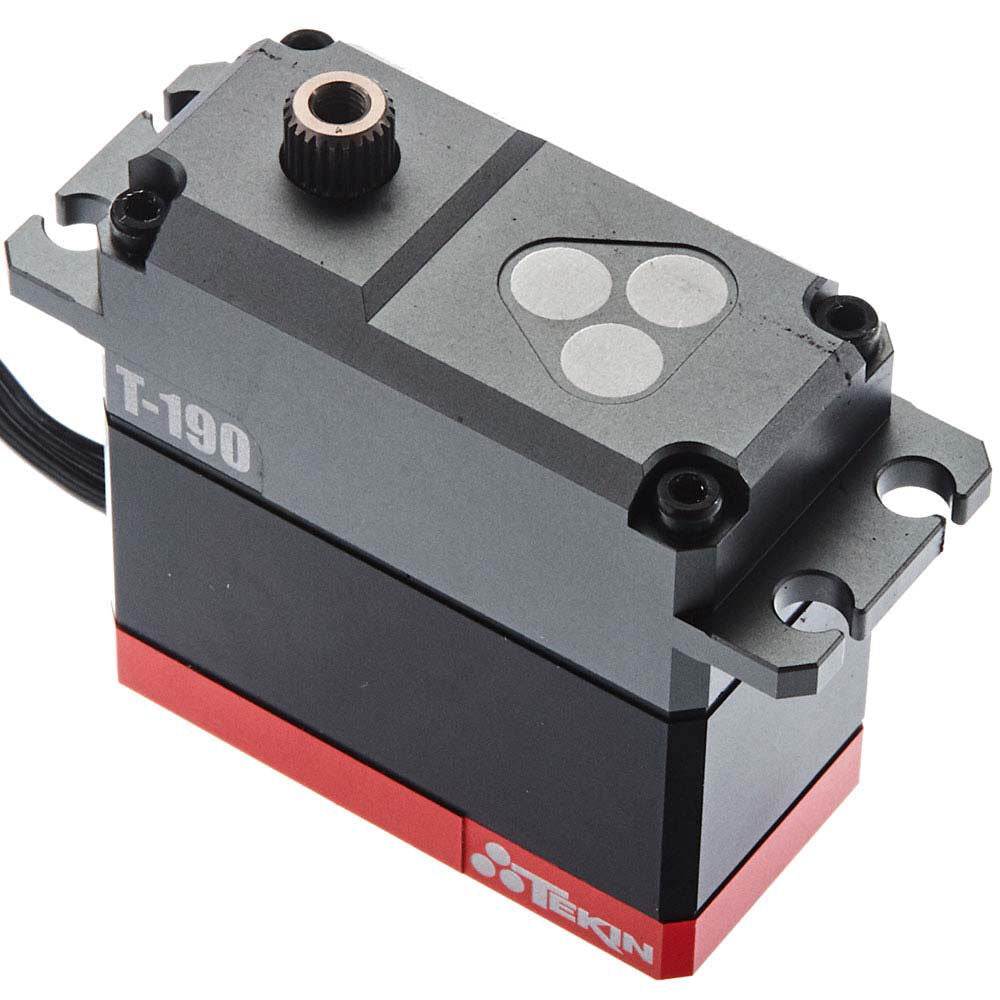

T190 Servo Standard 1/10 Torque Vector Aluminum Arm
$273.99 CAD
Shipping calculated at checkout.
Description
Key Features
- Specifically Designed for 1/12 and 1/10 Scale Applications
- Included Aluminum 20mm Vector��/sup> Servo Arm
- Full Aluminum Servo Housing
- Precision Cut Full Metal Gears
- ABEC5 Ball Bearings
- Digital Magnetic Position Encoder
- High Voltage Capable
- High Torque Coreless Motor
- 25T Output Spline
- Programmable via HotWire��/sup> Interface
- Overload Protection Technology
- Thermal Protection Circuitry
- Low Voltage Alarm*
- Quiet, Efficient, Cool Operation
- HDAC: High Density Copper PCB's
- *requires HotWire sold separately
Overview
Precision and Power in both on and off road, the T-190 commands the track. Designed to give you the industry's highest per degree resolution steering and plenty of speed to keep that chassis where you want it. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you in control. Fine-tune your setup with and extensive set of adjustments via Tekin's HotWire PC Interface.
| Product Height | 1.57" (40 mm) |
|---|---|
| Maximum Servo Torque | 282oz/in @ 6.0V, 348oz/in @ 7.4V, 371oz/in @ 8.4V |
| Servo Type | Digital |
| Torque | 241oz/in at 8.4V, 215 at 7.4V, 215 at 6.0V |
| Product Weight | 2.53oz / 72g |
| Gear Type | Metal |
| Input Voltage | 4.8V-8.4V |
| Maximum Servo Speed | 0.07 sec/60 deg @ 6.0V, 0.06 sec/60 deg @ 7.4V, 0.05 sec/60 deg @ 8.4V |
| Spline Count | 25 - Tooth |
| Connector Type | Universal |
| Dimensions | 1.57 x 0.79 x 1.57in |
| Product Width | 0.79" (20 mm) |
| Material | Metal |
| Servo Size Category | Standard |
| Product Length | 1.57" (40 mm) |
