Sku: TRA77096-4ORANGE

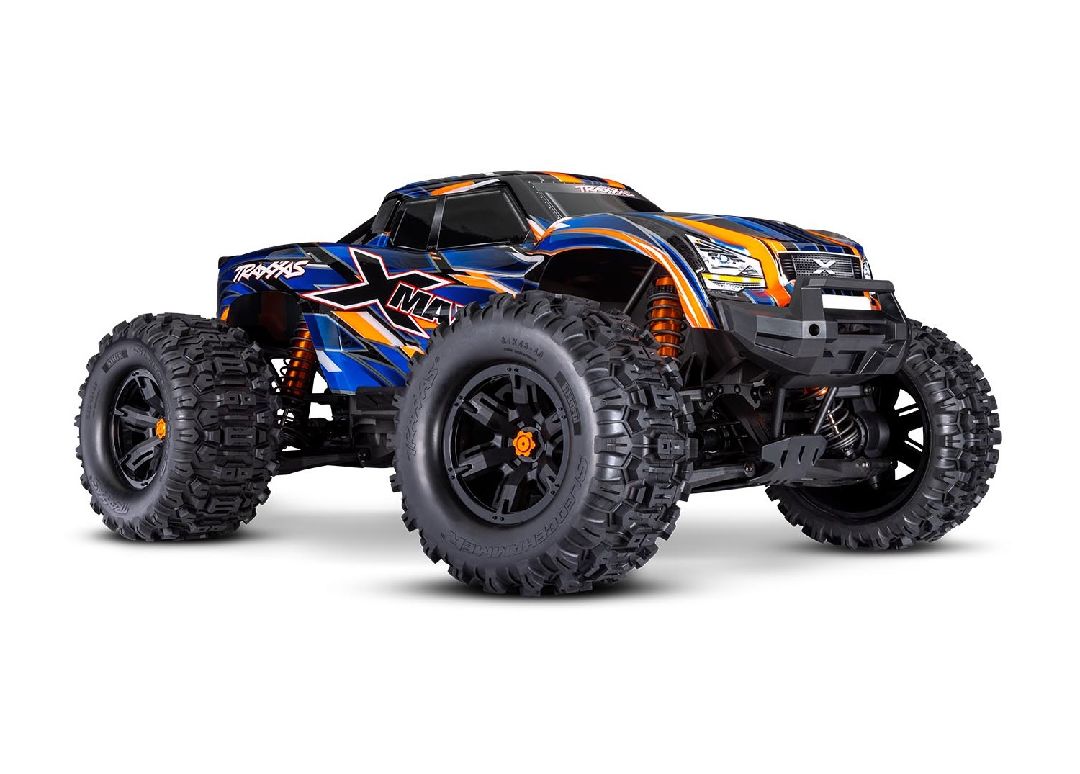

Traxxas X-Maxx Belted VXL-8s Brushless Monster Truck. Requires Battery & Charger - Orange

$1,922.99 CAD

Shipping calculated at checkout.

Description

Unrelenting 4X4 power, mammoth size, and award-winning innovation make X-Maxx the ultimate monster truck. With 30+ volts of extreme 8s power, X-Maxx defies physics, unleashing jaw-dropping acceleration and 50+ mph speeds. Engineered to conquer the most extreme terrain and take brutal real-world punishment in stride, X-Maxx is the definition of Traxxas Tough^™.

SIZE WINS

At the end of the day, size always wins. X-Maxx plows over obstacles and muscles through extreme terrain that leaves lesser trucks stranded. Mammoth 8-inch tall tires, long-arm suspension, and huge ground clearance dwarf the surroundings for virtually unstoppable monster truck fun.

EXTREME POWER

At Traxxas, too much power is never enough! The durability of the VXL-8s is matched only by the sheer ferocity of its 8s 30+ volt dual LiPo muscle. The speed-tuned 1200XL Big Block motor propels X-Maxx with brutal authority and exacting quickness that warps your senses. No matter what you have driven in the past, nothing will prepare you for X-Maxx.

MAXX-DUTY DRIVETRAIN

X-Maxx puts the power to the ground through tough all-steel drivetrain gears, the revolutionary Cush Drive^™ system, and our strongest driveshafts ever. The Torque-Biasing Center Drive improves driveline durability and drives larger module ring and pinion gears on the toughest differentials we have ever produced.

X-MAXX VIDEOS

INNOVATION

Insightful engineering and precise integration of innovative solutions set X-Maxx in an all-new category of superior performance. It’s as satisfying and rewarding to use as it is fun and exciting to drive.

DETAILS

The full X-Maxx experience of strength, power, and agility relies on all the carefully engineered details that begin to emerge when you peel back the layers. Old conventions were discarded as every system and dimension was examined and taken to a level worthy of the Maxx^® legacy.

Modular Chassis Design

The interlocking modular chassis design keeps the motor and the gear drive together as a unit to virtually eliminate gear-crunching chassis flex. Plus, the design provides easy access to critical components, making any needed maintenance or repairs a snap to perform.

8s-Rated Tires

The wheels and tires are massive and so is the grip from the hyper-aggressive all-terrain tread. Traxxas specially-engineered a new tire compound and mounting system to cope with X-Maxx’s ferocious speed. Full-throttle tire-squealing acceleration is more fun than ever without the worry of ripping a tire off the bead. Our engineers overlooked nothing to ensure X-Maxx delivers the bulletproof durability you expect from a Traxxas truck.

GTX^™ Aluminum Shocks

X-Maxx’s four enormous high-performance oil-filled GTX^™ aluminum shocks smooth out the roughest terrain for the super-plush ride that made Maxx trucks famous. The large oil volume dissipates heat for all-day shredding while an integrated wiper seal keeps the shafts clean, reducing seal wear for long life.

Shock Tower Design

X-Maxx’s shock towers introduce an exclusive Traxxas look that offers rigid, triangulated structure and an authentic off-road look that fills in the wheel openings of the truck. They also serve as a convenient carry handles and provide level supports for the X-Maxx when placed upside down for cleaning.

Rock-Solid Motor Mount with Dual Cooling Fans

The motor mount cradles the motor so it can’t flex on the mount. Gear mesh is held firmly in place by keyed pins so there’s no need for tricky adjustments. Eliminating flex means longer gear life, even in the most punishing conditions. The dual-fan assembly helps cool the motor for extended run times and maximum fun.

Monster Travel

Achieving X-Maxx’s huge suspension travel, tight turning circle, and incredible strength required hundreds of hours of modeling, development, and testing to package all of that capability in these sophisticated components. Exciting visual form follows unsurpassed function and performance.

Waterproof From the Start

Waterproofing our models has never been an afterthought at Traxxas. Patented Traxxas innovation seals out the water so that your playground doesn’t end when the fun involves water, snow, and mud. Dirty truck? Just hose it off. The box allows fast radio access without removal.

Double Shear Connections

X-Maxx uses double shear connections when the mission requires incredible strength. Suspension hinge points, shock mounting, and even the steering servo output shaft are engineered to redefine Traxxas Tough^™. Captured, high-strength steel suspension pins are used throughout and will never unscrew or “back out”.

Steering Authority

A new servo was created to deliver the strength and the torque necessary to give X-Maxx unmatched steering authority. The quick steering and tight turning circle, combined with advanced suspension geometry, gives X-Maxx nimbleness and control that you might not expect from such a large vehicle.

Impact Cushions

X-Maxx is equipped with energy-absorbing impact cushions behind the front and rear bumpers to help soften the blows and make X-Maxx even more durable in demanding situations—even the unexpected ones.

CV Driveshafts

Traxxas armed the X-Maxx with our strongest driveshafts to harness the twisting power of the motor’s extreme torque. This rugged design maximizes suspension travel, steering angles, and overall durability. The differential outputs are splined for incredible strength, and they center bolt to the differential for easy cleaning and service. Splined wheel hexes eliminate axle pins that require through holes that create a weak point in shafts.

Shock-Absorbing Cush Drive

Conventional slipper clutches could not withstand the monster torque loads of the 8s X-Maxx. Instead, our engineers adapted the revolutionary Cush Drive system from the 100 mph XO-1 Supercar and strengthened it with a steel spur gear. Instead of slipping, the Cush Drive sends pure uninterrupted power straight to the Torque-Biasing Center Drive for unimaginable acceleration.

Aluminum Splined Driveshaft

The tough aluminum center driveshaft carries the power to the front and rear differentials. Splined drives are used throughout for precise engagement, incredible strength, and smooth running.

Maxx-Duty Sealed Diffs

X-Maxx differentials feature our largest module steel ring and pinion gears ever to handle the rigors of challenging off-road situations. The differentials are sealed and filled with heavyweight oil, which gives the feel of limited-slip differentials. What the driver feels is confidence as the X-Maxx power slides through turns with massive roost and total control.

Full Contact Sealed Bearings

X-Maxx features full contact sealed bearings in outboard locations to keep out the grime and grit. Less downtime for cleaning and maintaining bearings equals more run time for X-Maxx.

Torque-Biasing Center Drive

The Torque-Biasing Center Drive absorbs shocks to improve driveline durability. The Center Drive also distributes power to all four wheels for mind-bending four-wheel drive acceleration without the side effects of a typical center differential. Center differentials allow tires in the air to balloon uncontrollably, while the Torque-Biasing Center Drive allows wheelies off the line with seamless power distributed to all four wheels.

Length:	30.67 inches (779 mm)
Front Track:	21.3 inches (540 mm)
Rear Track:	21.3 inches (540 mm)
Ground Clearance:	4 inches (102 mm)
Weight:	19.1 pounds (8.66 kg)
Height (ride):	13.79 inches (350 mm)
Wheelbase:	18.92 inches (480 mm)
Shock Length:	7.4 inches (187 mm)
Tires (pre-glued):	8.0x4.0 inches (203 mm)
Wheels:	4.3x5.7 inches (110x145 mm)
Wheel Hex Size:	24 mm splined hex
Speed Control:	Velineon^® VXL-8s
Motor (electric):	Velineon 1200XL
Transmission:	Single-speed

Overall Drive Ratio:	8.11 (stock, out-of-box)
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Pitch:	1.0 pitch
Chassis Structure/Material:	Composite Nylon tub
Brake Type:	Electronic
Drive System:	Shaft-driven 4WD
Steering:	Bellcrank
Radio System:	TQi™ 2.4 GHz Transmitter with TSM^® receiver
Servo:	Torque: 365 oz/in Speed: 0.17 sec/ 60° (6.0 V)
Top Speed:	50+ MPH with two 4s LiPo batteries and optional gearing
Skill Level:	6
Battery Tray:	197 mm x 51.5 mm x 44 mm
Required Batteries:	4 “AA” (transmitter) and 3-cell LiPo battery (x2) or 4-cell LiPo battery (x2)
