- Sku: SEHREEFS124

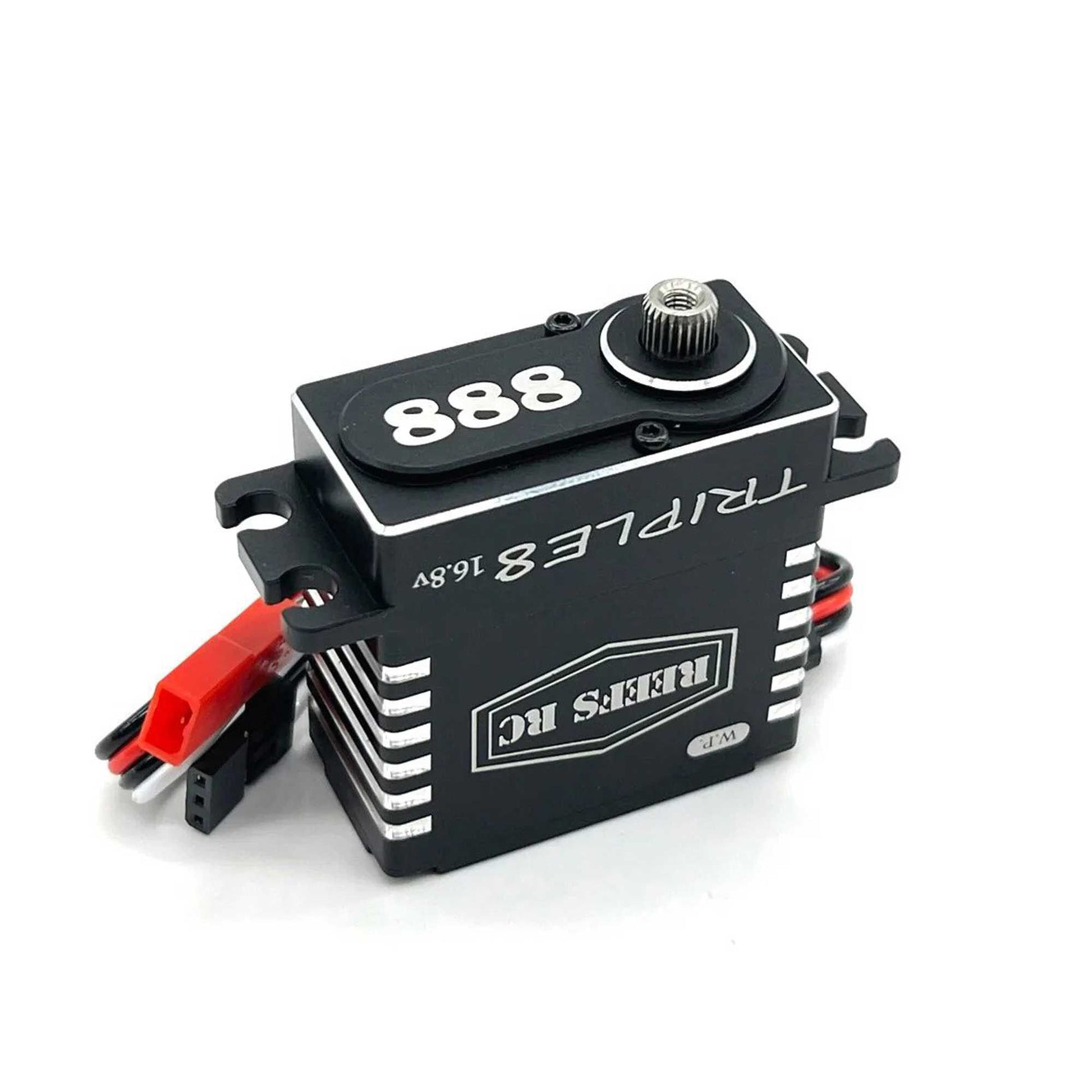

Triple8 Standard Digital Metal Gear Waterproof Direct Power Servo Black
$273.99 CAD
Shipping calculated at checkout.
Description
| Servo Operating Voltage | 12.0V - 16.8V (HV) |
|---|---|
| Product Width | 0.78" (20 mm) |
| Input Voltage | 12.0 V ~ 16.8V |
| Maximum Servo Torque | 640oz/in @ 12.0V, 765oz/in @ 14.4V, 860oz/in @ 16.0V, 917oz/in @ 16.8V |
| Servo Size Category | Standard |
| Bushing Or Bearing | Bearing |
| Servo Type | Digital |
| Product Weight | 3.12oz (88g) |
| Connector Type | JST-RCY, Universal |
| Product Height | 1.63" (41 mm) |
| Deadband | 2袖s |
| Water-Resistant | Yes |
| Application | 1/10 - 1/8 Cars, Trucks |
| Spline Count | 25 - Tooth |
| Product Length | 1.57" (40 mm) |
| Bearing | Triple Ball Bearing |
| Maximum Servo Speed | 0.13 sec/60 deg @ 12.0V, 0.11 sec/60 deg @ 14.4V, 0.10 sec/60 deg @16.0V, 0.09 sec/60 deg @ 16.8V |
Triple8 Standard Digital Metal Gear Waterproof Direct Power Servo Black
$273.99 CAD
